52mm Universal CAN-Bus & Analog Telemetry Display

Due to the precision hand-assembly required for each unit, please allow a two-week lead time for delivery.

The Motorsport-Grade 52mm AMOLED CAN & Telemetry Display

Monitor critical engine vitals, stream live ECU CAN data, and prevent catastrophic engine failure with instant visual alarms—all in a standard 52mm pod.

Engineered in Austria for demanding motorsport applications, the PulseWorks DP001 is the ultimate 52mm telemetry solution. Built to bridge the gap between complex standalone ECUs and the driver's sightline, this gauge delivers critical, lag-free engine data with a clean, OEM+ aesthetic.

Powered by an advanced dual-core microprocessor, the DP001 outperforms the competition where it matters most. Whether you are monitoring CAN-Bus data from your aftermarket ECU or hardwiring bespoke sensors, the DP001 is the premium, no-compromise alternative for track days, drift builds, and high-performance street cars.

Core Capabilities & Integration

• Class-Leading 8 Analog Inputs: Don't be limited by standard 4 or 6 input displays. The DP001 features 8 fully independent 0-5V or resistance-based inputs. Monitor oil pressure, fuel pressure, EGTs, and ethanol content directly through the gauge—no ECU required.

• Lag-Free Dual-Core Processor: Motorsport requires real-time data. Our dual-core architecture guarantees high-speed CAN parsing (up to 1000kbps) and a buttery-smooth display refresh rate, ensuring you never miss a vital pressure drop or temperature spike.

• Custom 10-Point Sensor Calibration: Use any sensor, from any brand. Define custom calibration curves directly on the device for pinpoint accuracy, whether you are running a Bosch fluid pressure sensor or a generic map sensor.

• Standalone Over-The-Air (OTA) Updates: No need to pull your dash apart to update firmware. The DP001 features integrated 2.4 GHz Wi-Fi, allowing you to update software and add new ECU protocols directly from your smartphone or home network.

• Unrivaled Value: Industry-leading hardware, more sensor inputs, and a faster processor—all priced to ensure you have budget left over for track time.

• Integrated Gyroscope and Accelerometer: Features a built-in inertial measurement unit (IMU) to accurately track and display real-time vehicle dynamics, providing live telemetry for roll, yaw, and G-forces.

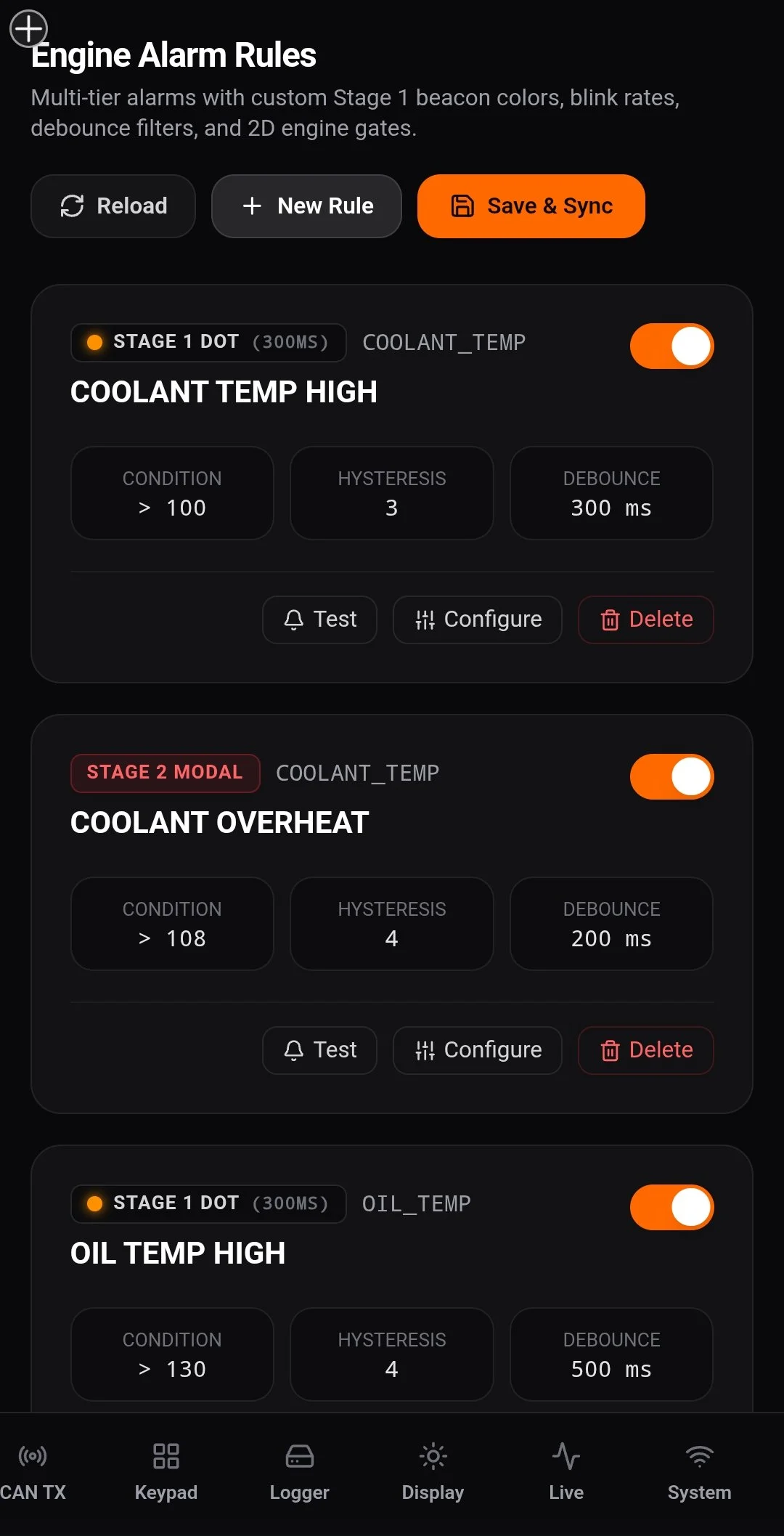

• Advanced Warning System: Configurable visual alerts for critical values with 2D Gate mapping and advanced visual settings.

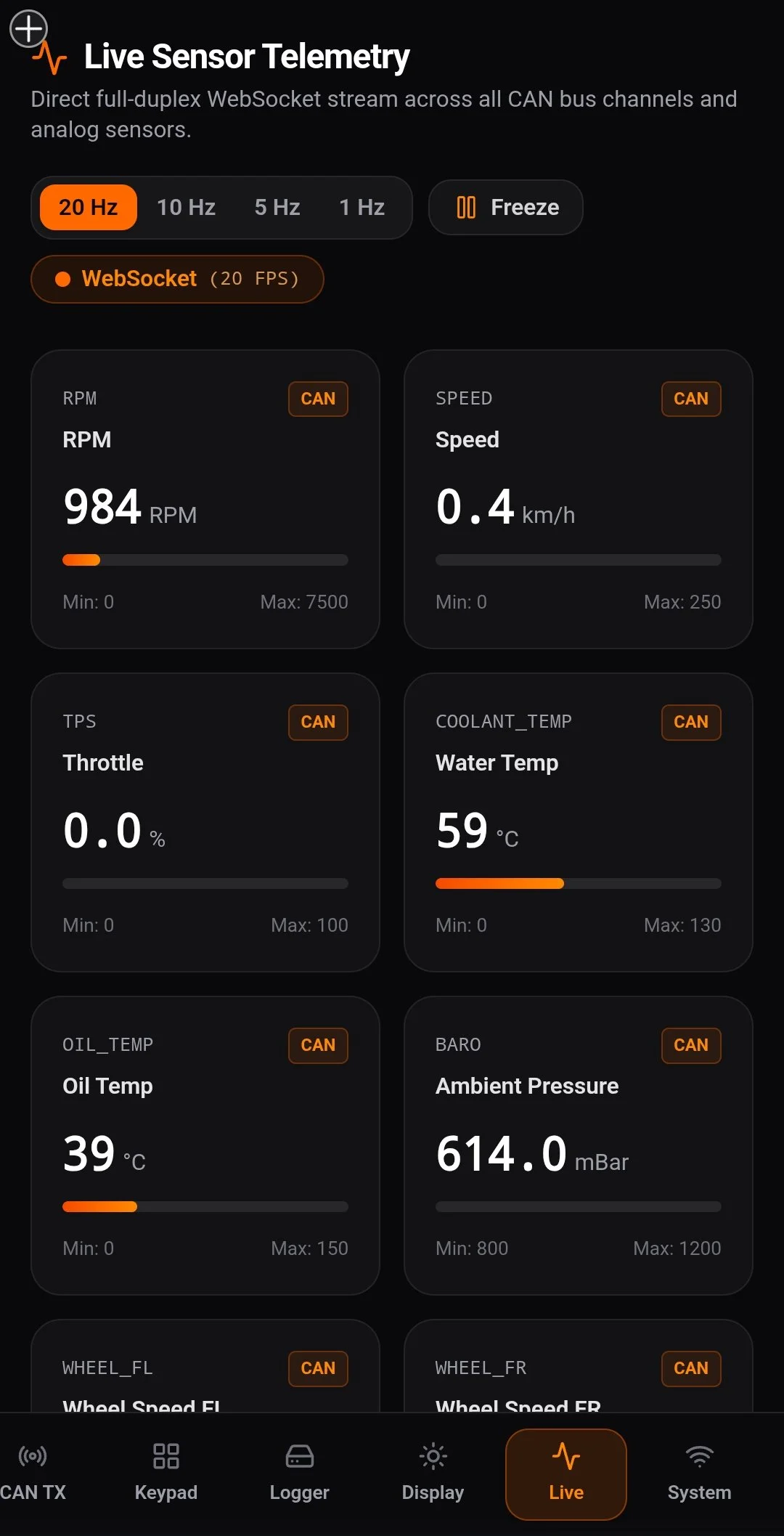

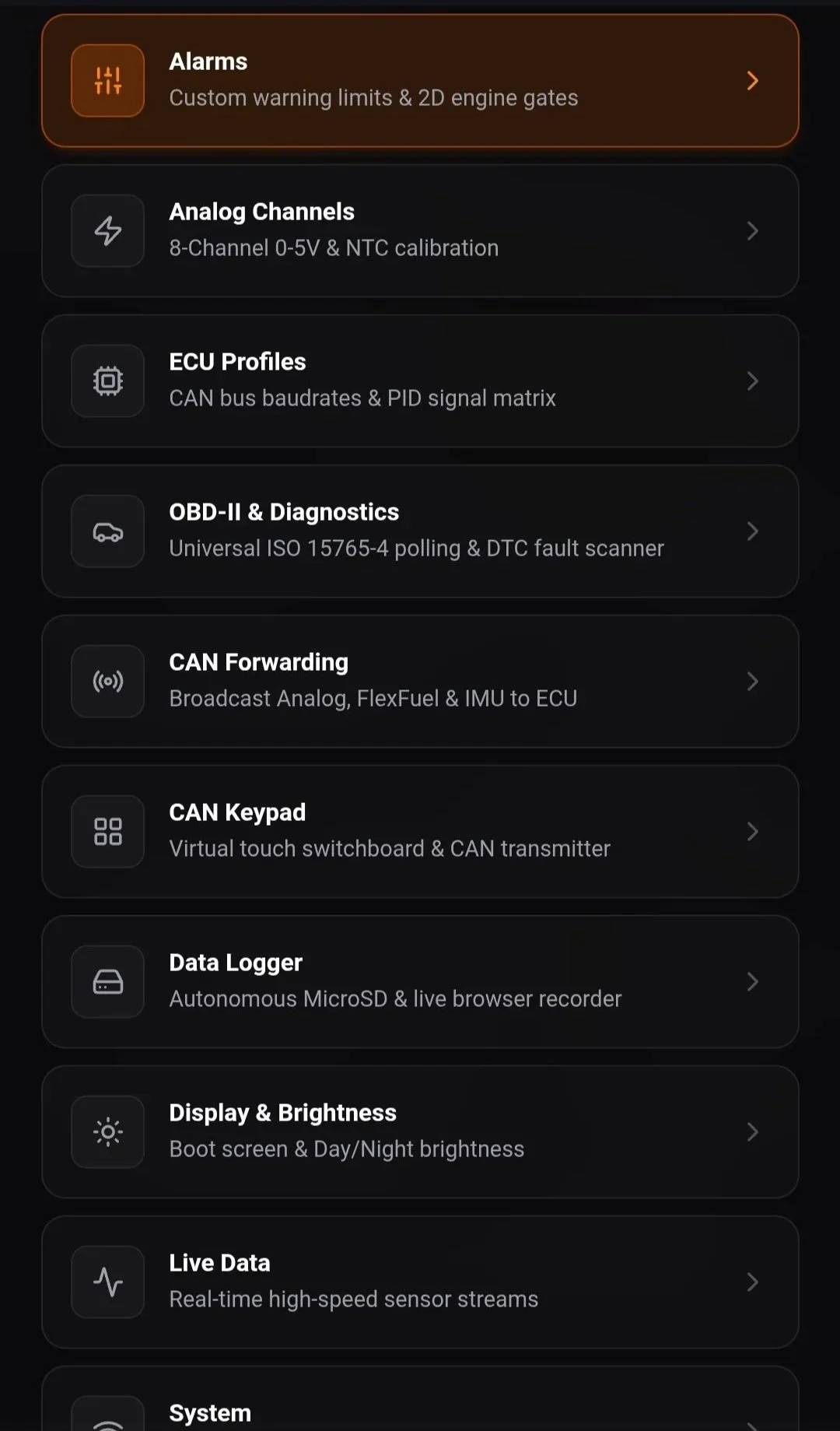

• Phone/Web Configuration: Dedicated mobile / web application to streamline setup and gauge configuration via laptop/pc or smartphone.

• Dedicated Headlight Dimming: Options for auto dimming the display with dedicated 12V input or CAN

Seamless ECU & Vehicle Integration

Stop guessing if your gauge will communicate with your engine management. The PulseWorks DP001 features universal CAN-Bus connectivity, engineered to seamlessly read live broadcast data from the industry’s leading standalone systems.

Ready to connect with:

• MaxxECU (Street, Sport, Race, Pro)

• Haltech (Nexus, Elite, Platinum)

• Ecumaster (EMU Black, EMU Classic)

• Link ECU (G4X, G4+)

• Megasquirt & Motorsport OBD2 protocols

• Your own DBC Files

• We add profiles on request!

Precision Housing & Fitment

• Industrial-Grade ASA Enclosure: UV-resistant and built to withstand extreme cabin temperatures.

• Rattle-Free "Crush Rib" Design: Drops perfectly into any standard 52mm gauge pod, vent mount, or pillar pod without screws.

• Anti-Rotation C-Clip: A custom rear locking mechanism ensures the gauge stays perfectly level during high-G maneuvers and heavy curb strikes.

Technical Specifications

• Form Factor: 52mm standard round gauge for OEM-like integration

• Processor: High-performance Dual-Core Microprocessor for lag-free data processing

• Analog Channels: 8x independent inputs (Voltage/Resistance with custom 10-point calibration curves)

• Digital Bus: High-Speed CAN integration (100/125/250/500/800/1000kbps)

• Connectivity: 2.4 GHz Wi-Fi (for standalone OTA updates) & Bluetooth Low Energy (for future expansions)

• Power Supply: 12V automotive power supply

Development Roadmap

The operating system is subject to continuous enhancement, with the following features currently in active development for delivery via free OTA updates:

• Diagnostic Expansion Module: Multi-CAN hardware integration to request OBD/ECU data for vehicles lacking native main-CAN support.

• Warning/Shift Module: Dedicated Hardware for showing Shift lights or visual warnings and sounds

• Relay Module: Hardware for switching Relays and other things

• Advanced Inputs Expansion: Dedicated module for advanced inputs like Hall effect sensors for measuring RPMs, Intake Timing and more

• Custom Theme Engine: Software tools enabling users to design and upload fully custom user interfaces.

Disclaimer: This component is expressly designed for off-road and motorsport track use only. Ensure the vehicle battery is fully disconnected prior to installation.
